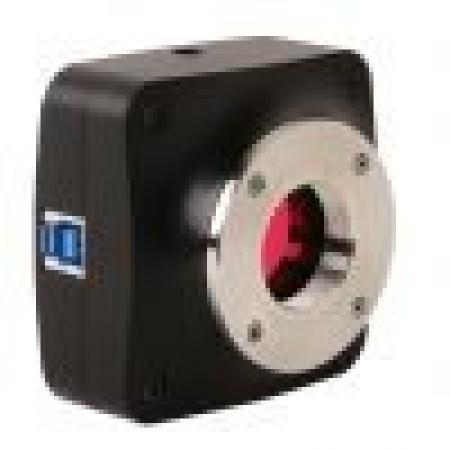

EUREKAM 3.0 PLUS
Codice Prodotto: TC010040
Disponibilità: Pre-Ordinare
TELECAMERA A SENSORE CMOS 1/2.7'' PER MICROSCOPI BEL
EUREKAM PLUS is the camera for everyday microscopy. Thanks to new image-processing algorithms and a the image processing chip, Eurekam plus cameras can handle images with lowest latency to get the fastest response.
In addition to this the USB3.0 high-speed interface delivers images 10 times faster than traditional USB2.0. With the built-in automatic white balance and autoexposure, the user gets immediately clear images.
In the package:
Eurekam plus camera, USB3.0 cable (retrocompatible with USB2.0 ports), Eyepiece adapter (Ø 23mm port), rings (for Ø 30 and Ø 30,5mm ports), micrometric slide (for measurements calibration), CD-ROM with Software, User manual
| Nome |
Eurokam 3.0 Plus |
|---|---|
| Drivers |
No drivers required, plug and work |
| Sensor |
Color CMOS sensor |
|---|---|
| Sensor size |
1/2.7’’ |
| Image processor |
Built-in image processor |
| Pixel size |
3.0 um x 3.0 um |
| Preview resolution |
1920 x 1080 or 2304 x 1296 |
| Capture resolution |
1920 x 1080 or 2304 x 1296 |
| Frame rate |
30fps (@2MP, 1920x 1080) |
| Scan mode |
Progressive |
| Shutter |
Rolling shutter |
| Color depht |
24 bit |
| Exposure control |
Manual / Auto |
| Exposure time |
1ms – 33ms |
| White balance |
Manual / Auto |
| Operating temperature |
0-60°C |
| Operating humidty |
45%-85% |
| Optical port |
Standard C-mount |
| Data interface |
USB3.0 - 5Gb/sec (compatible with USB2.0) |
| Software compatibility |
Windows XP/7/8/10 |
