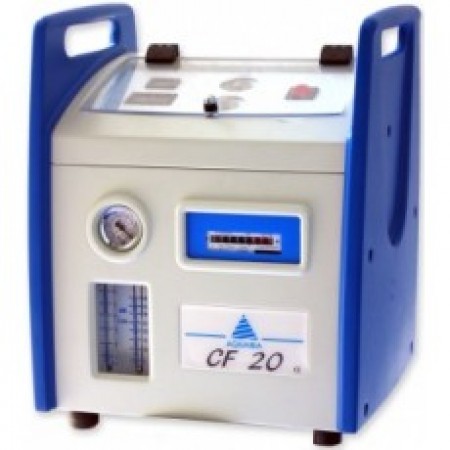

CF20/S Light

The CF 20 αlfa Light / s is an ideal tool for all operators that require a sampler reliability and accuracy of measurement, combined with maneuverability and versatility of operation. With this device, coupled with the most varied accessories designed in compliance with current regulations, it is possible to operate the dust sampling in the workplace, inputs and emissions.

 The instrument is supplied with a convenient removable carrying handle in plastic canvas

Fields of application:

Workplaces
emissions
entries
The tool was developed in accordance with:

UNI EN 12919

TECHNICAL FEATURES

Chassis: the front and back in high density polyurethane
aluminum rear
rounded corners
The polyurethane and aluminum body prevents the formation of rust and makes the lightest and pleasant instrumentation. The elimination of sharp edges ensures full compliance with current regulations
Control console protected by a plexiglass panel lockable with a padlock
Pump: a single head membrane
Pump head: 640 mm Hg
Flow Range: 0.25 ÷ 16 l / min (with glass fiber filters or with porosity 0.8 uM)
with free air flow rate: 20 liters / min
Flow Measurement: using 2 flowmeters precision (range 0.2 to 6 l / min and from 2 to 40 l / min)
Volume measurement: by dry volumetric counter
Resolution flow meter: 0.25 liters
Temperature measurement: by thermocouple with actual value display display
Vacuum measurement: via built-in vacuum gauge (vacuum gauge allows you to check the tightness of the pneumatic line and the gradual clogging of the media used)
Activation: by On / Off button
Steam trap located at the rear of the instrument
Power: AC, 220 V 50 Hz.
Dimensions: 35 x 40 x 31.5 cm (W x H x L)
Weight: 11.3 kg
Working conditions:
- Temperature: 0-40 ° C
- Humidity: 20 to 80% non-condensing

The instrument is supplied with no programmer but only with BUTTON ON - OFF

NEWS: To reduce difficulties and alleviate the fatigue that often accompanies the sampling operations related to the transportation of instruments, Aquaria has created the first patented sampler on wheels.

The CF20 α Light can indeed be provided in the "trolley" version resistant rear wheels and transported as a simple trolley.
The trolley telescopic handle can be used as support for a practical bag for accessories, PC, tablet etc., Available as an option.

On the back of the instrument it is also possible to mount a telescopic pole (adjustable from 80 to 160 cm) port sampling device, to make the entire sampling system more compact and functional.
